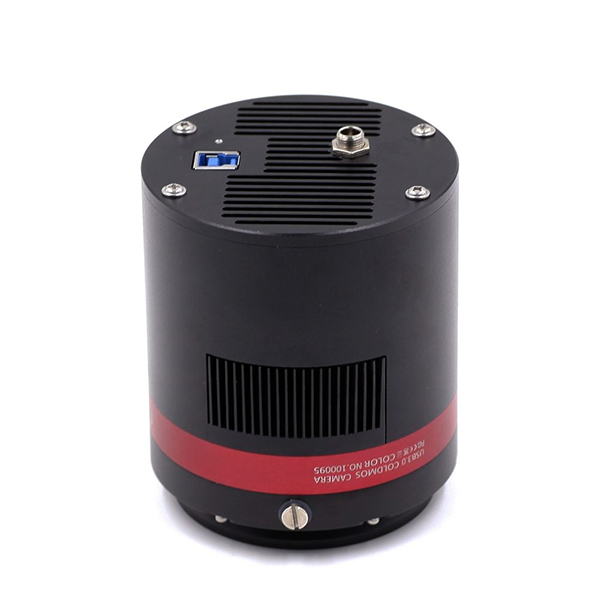

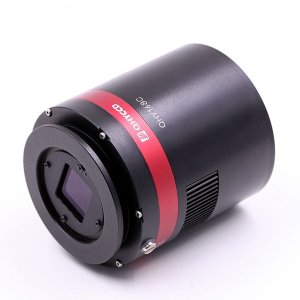

The QHY168C is a cooled USB 3.0 color imaging camera with a large 16-megapixel sensor that offers 14-bit output. The 168C sports the Sony IMX071; an APS-C color sensor with a 4952 x 3288 effective array of 4.8um pixels. This is the same sensor that is used in the Nikon D5100 camera. It has a dynamic range of almost 14 stops /*C*and*C*/ has low readout noise, with 3.2e at lowest gain /*C*and*C*/ 2.3e at high gain. The IMX071 front-illuminated sensor is housed in a sealed chamber that is heated to prevent dew from building up on either the sensor /*C*or*C*/ window.

The QHY168C comes with a two-stage TEC cooling /*C*and*C*/ temperature regulation system that can cool your camera down to as low as -40C below ambient. QHY has also incorporated anti-dew technology into the QHY168C. The CMOS chamber is fully sealed /*C*and*C*/ includes a silicon gel tube socket as well as a heater to help keep both your sensor /*C*and*C*/ the sensor window dry, even on damp nights.

In an effort to avoid halos around bright stars the optical window has an AR+AR coating instead of the traditional IR-Cut window normally offered on one-shot color cameras. There is a trade off in that you will need to provide your own 2' IR-cut filter /*C*and*C*/ mount it on the front of the camera.

The QHY168C allows for true raw image output! When you get the original signal to work with, you have maximum flexibility in the image processing stage of the process. Also, a built-in 128MB DDRII image /*C*buffer*C*/ provides a safeguard against unexpected drops in data transmission. A frame /*C*buffer*C*/ avoids lost frames during USB transfer by storing image data in the camera itself until it can be safely transmitted. Buffering will also make sure your video runs more smoothly when using a slower computer that cannot always handle high-speed data well.

The QHY168C camera has an anti-amp light control circuit to reduce amplifier glow significantly. Ports include a 6-pin RJ11 Guide Port /*C*and*C*/ a 4-pin CFW2 Filter Wheel Control Port, allowing you to add an optional autoguider /*C*or*C*/ filter wheel to enhance your imaging experience.

• CMOS Sensor: Sony IMX071
• Color /*C*or*C*/ Monochrome: Color
• Effective Pixels: 4952x3288
• Imager Size: APS-C Format
• Pixel Size: 4.8um
• Shutter: Electric Rolling Shutter
• Full Well Capacity: 46ke-
• Readout Type: Progressive Scan
• Exposure Time Range: 30us - 3600us
• Max Frame Rate: 10 FPS at Full, 30 FPS at 1920x1080 HD
• Readout Noise: 3.2e at lowest gain, 2.3e at high gain
• Output Sample Depth: 14bit/8bit
• On Camera Image Buffer: Yes, 128MB DDRII Buffer
• Cooling: 2-stage TEC, Typical -40 below Ambient, Temperature Regulated
• Power: USB Powered for camera /*C*and*C*/ +12V powered for TEC
• Anti Dew Control: Air Connector for removable silicon gel tube. Heat board for optic window of sealed CCD chamber
• Computer Interface: USB3.0 Super Speed
• Telescope Interface: M54/0.75 female thread on the fast installer/center adjust ring
• Color Wheel Port: 4PIN QHYCFW2 socket
• Guide Port: 6PIN RJ11 Guide Port
• Optic Window: AR+AR

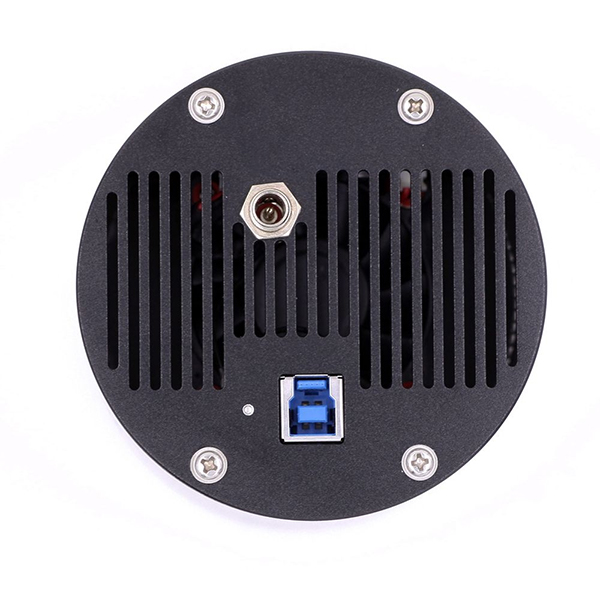

• Electric Interface: 12V /*C*input*C*/ with lock, USB3.0 socket, 4PIN QHYCFW, 6PIN RJ11
• Software: SharpCAP, ASCOM, EXCAP_QT, /*C*and*C*/ FireCapture
• Weight: 450g/15.87 ounces

DESCRIPTION

SPECIFICATION

Model Number                                             QHY168C

Imaging Camera Series                                 QHY Cooled Mono

Color /*C*or*C*/ Monochrome Camera                        Color

Cooled /*C*or*C*/ Uncooled                                      Cooled

Pixel Size in Microns                                    4.8

Pixel Array & Resolution                                4952x3288(16.3MP)

Sensor Model                                              IMX071

Camera Sensor Manufacturer                          Sony

Sensor Type                                               CMOS

Sensor Dimensions(mmxmm)                         23.77X15.78

Sensor Diagonal(mm)                                    28.53

Native Bit Depth                                            14

Mininum Exposure                                        30 µs

Maximum Exposure                                      3600seconds

Native Back Focus(mm)                                         18

Camera Thread Type                                     M54 Female

Camera Window                                           AR+AR

Computer Interface                                       USB3.0
