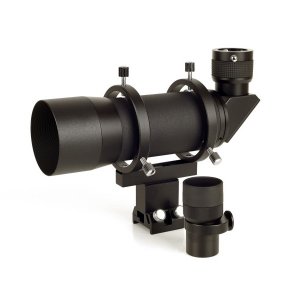

Our high-quality APM 60mm viewfinder with the universal base /*C*and*C*/ wider mounting surface.

The built-in 90° roof prism ensures an upright /*C*and*C*/ correct image. The delivery includes our 24mm crosshair eyepiece, providing an enlargement of 9.5x. The optics /*C*and*C*/ prism are multicoated.

Characteristics:

• High quality optics Ø 60mm
• APM crosshair eyepiece 24mm
• Multi-coated objective lens
• 1.25' helical focuser
• Roof prism

Delivery:

• Finderscope 60mm
• APM crosshair eyepiece 24mm
• Roof prism
• Universal mounting base

Products specifications

​​

Connection to eyepiece    1 1/4'

Coating                           Fully multicoated

Housing                           Aluminium

Focal length                     228 mm

Connection to telescope   Finderbracket with Quick Clamp

Aperture                           60 mm

Lenses                             2 Lenses

Optical design                   Achromat

Diameter                           63 mm

Type of viewfinder              90° Finderscope

Weight                              28.4 oz.

Length                              240 mm

Accessories                      incl. Bracket with Quick Clamp /*C*and*C*/ 26 mm Crosshair Eyepiece

Magnification                     9 x
