WUCAM8MPA USB-C + Wi-Fi C-mount CMOS Camera

Product Introduction​

The WUCAM series cameras offer a complete USB + Wi-Fi dual-interface microscopy imaging solution, capable of connecting to smart devices and computers through wireless networks, or directly connecting to computers via USB interface for video and image acquisition in stereoscopic or biological microscopes.

This series includes three models: WUCAM8MPA features the Sony IMX678 Starvis 2 sensor, providing 4K ultra-high-definition resolution; WUCAM1080PB also utilizes the IMX678 sensor but optimized for 60 fps high frame rate output; WUCAM1080PA employs the Sony IMX307 sensor, offering an economical 1080P solution. All models support Wi-Fi AP/STA dual modes, equipped with 802.11ac/n chips and high-gain antennas for stable wireless transmission.

The entire series provides rich ISP processing functions, including professional adjustments for tone, saturation, ROI white balance, and more. Through ToupView/ToupLite professional software, users can fully utilize advanced processing functions such as layers, measurement, image stitching, image stacking for noise reduction, and multi-focal plane image fusion. It also supports iOS/Android mobile applications, enabling flexible multi-platform applications.

Model: WUCAM8MPA

Sensor: Sony IMX678(C) Starvis 2

Resolution: 8MP (3840×2160)

Sensor Size: 1/1.8" (7.68×4.32 mm)

Pixel Size: 2.0 µm × 2.0 µm

Frame Rate: USB-C: 30 fps@3840×2160, 30 fps@2688×1512, 30 fps@1920×1080; Wi-Fi: 30 fps@3840×2160, 30 fps@1920×1080, 30 fps@1280×720

Output Interface: USB-C, Wi-Fi 802.11ac

Lens Mount: C-mount, M42

Product Features

● 4K ultra-high-definition output      ● Starvis 2 back-illuminated sensor

● Dual-interface output mode        ● Wi-Fi AP/STA mode switching

● ROI white balance                   ● Ultra-Fine color engine

● 3D noise reduction                  ● Local dynamic range adjustment

● Anti-flicker function

Key Parameters

Product Model: WUCAM8MPA

Product Series: USB-C + Wi-Fi C-mount CMOS Camera

Sensor Model: Sony IMX678(C) Starvis 2

Sensor Size: 1/1.8" (7.68×4.32 mm)

Diagonal: 8.8 mm

Pixel Size: 2.0 µm × 2.0 µm

Resolution: 8MP (3840×2160)

Shutter Type: Rolling shutter

Color Type: Color

Frame Rate: USB-C: 30 fps@3840×2160, 30 fps@2688×1512, 30 fps@1920×1080; Wi-Fi: 30 fps@3840×2160, 30 fps@1920×1080, 30 fps@1280×720

Exposure Time: 0.04 ms ~ 1000 ms

Sensitivity (Gain): 1364 mV with 1/30s

Dark Current: 0.15 mV with 1/30s

Output Interfaces: USB-C, Wi-Fi 802.11ac

Lens Mount: C-mount, M42

Storage Support: No local storage

Software Support: ToupView, ToupLite, iOS App, Android App

Power Supply: USB-C DC 5 V/2 A

Dimensions: 50 × 50 × 112 mm

Weight: 0.5 kg

Operating Temperature: -10 °C ~ +50 °C

Storage Temperature: -20 °C ~ +60 °C

Operating Humidity: 30~80%RH

Storage Humidity: 10~60%RH

OS Support: Windows XP/Vista/7/8/8.1/10/11 (32 & 64 bit), macOS 10.10+, Linux (kernel 2.6.27+), iOS 11+, Android 5.1+

Certification: CE, FCC, RoHS, UL

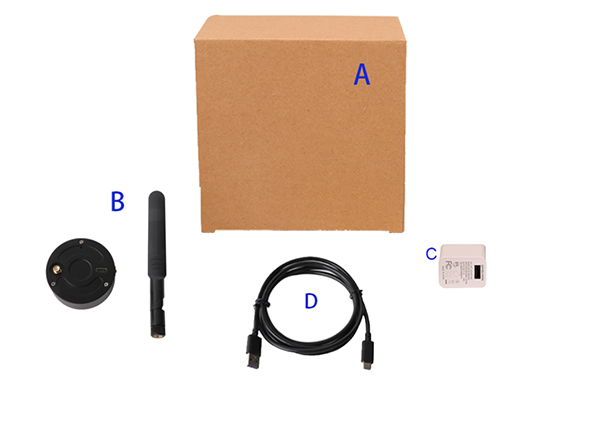

Standard Packing List

A. Camera box size: 17.0 cm × 15.0 cm × 6.0 cm (1 pcs, 0.5 kg per box)

B. WUCAM8MPA camera ×1

C. Power adapter: Input AC 100~240 V 50/60 Hz, output DC 5 V 2 A; US POWER-U-5V2A (SK12G-0500100U: UL/CE/FCC), EU POWER-E-5V2A (SK12G-0500100V: UL/CE/FCC)

D. USB Type-C to Type-A cable 1.5 m
